| ब्रांड नाम: | AIKE POWER |
| मॉडल संख्या: | AY625 |
| एमओक्यू: | 1 |
| मूल्य: | USD |
| आपूर्ति करने की क्षमता: | 20 सेट/एम |

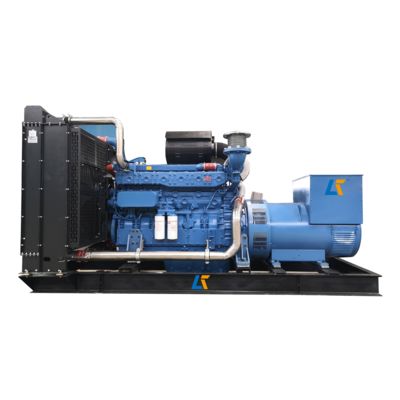

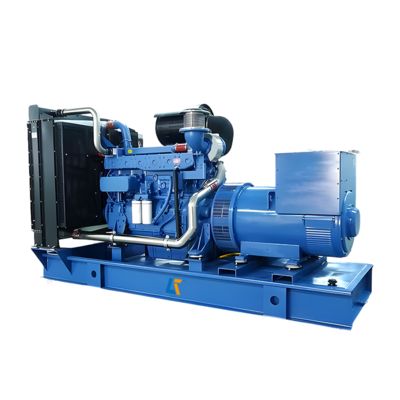

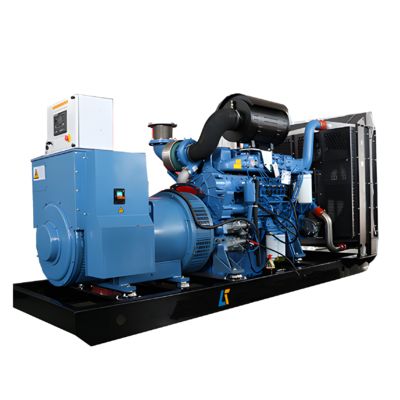

Yuchai power generator set with high voltage YC6TD780-D30 engine. Available configurations:
| Generator Set Specifications | ||
|---|---|---|
| Genset Model | AY625 | |
| Rating Power (KW/KVA) | 450/562 | |
| Standby Power (KW/KVA) | 500/625 | |
| Rating Ammeter (A) | 816 | |
| Diesel Engine Specifications | ||
| Engine Model | YC6TD780-D30 | |
| Prime Power (KW/KVA) | 356/445 | |
| Standby Power (KW/KVA) | 382/478 | |
| Cylinder Configuration | 6 cylinders in line | |
| Bore × Stroke (mm) | 152 × 180 | |
| Displacement (l) | 19.598 | |
| Compression Ratio | 14:1 | |
| Governor Type | Electric start | |
| Rated RPM | 1500 | |
| System Specifications | ||
| Exhaust Gas Flow (m³/min) | 33 | Max. Temperature: 550℃ |
| Air Intake Type | Turbocharged intercoolant | |
| Fuel Consumption (l/h) | 117 (rated) | 87.75 (75% load) |
| Cooling System Capacity | 10l | Max Temp: 550℃ |
| Alternator Specifications | ||
| Model | HCI544E | |
| Rating Voltage | 400/230V | |
| Efficiency | 87.5% | |
| Power Factor | 0.8 | |
| Enclosure Class | IP23 | |
| Insulation Class | H | |
| Physical Specifications | ||
| Dimensions (L×W×H mm) | 3303 × 1500 × 2000 | |
| Net Weight (kg) | 4130 | |
A: Yes
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.
A: About 15-25 days after receiving advance deposit or original L/C.
A: We have ISO certification and can apply for country-specific certificates including SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
A: One year or 1200 hours' running (whichever occurs first). During warranty period, we supply free replacement for easily damaged parts (excluding incorrect operation). After expiration, we supply cost spare parts for maintenance.
